ELF-C PRO CLIP-ON THERMAL IMAGER
Features
The ELF-C Pro is an enhancement attachment with a rapid upgrade to the low light night vision device and infrared thermaimaging ability: t is currently the world's lightest clip-on thermal imager with only 50g. The product is mounted
externallyusing a bracket, allowing for quick disassembly and calibration-free use,enhancing the recognition capabilities of nightvision devices.
ULTRA-LIGHTWEIGHT DESIGN
A weight of only 65 g.
FUSION IMAGING
Fast fusion imaging with night vision devices (NVDS) is available without calibration.
BLUETOOTH REMOTE CONTROLLER
It supports wireless Bluetooth remote control to switch device power status and working modes remotely.
HUD NAVIGATION DISPLAY
Used with the battery compartment and display of self-position and target navigation information.
SYNCHRONIZED FLIP-UP POWER-OFF WITH NVDS
It automatically powers off when flipped up to save power and resumes operation when put down.
MULTIPLE POWER SUPPLY MODES AND LONG BATTERY LIFE
It is compatible with CR123 and 18650 batteries, with a maximum battery life of 10 hours.
TECHNICAL DATA
| Optical General | |
| Magnification | 1× |
| Focal Length | 11.5mm / F1.0 |
| FOV(H×V) | 35°×30° |
| Thermal Sensor | |
| Resolution | 640×512 pixels, 12μm |
| Frame Rate | 50Hz |
| Others | |
| Compass | ✓ |
| External GPS | ✓ (Optional) |
| Advanced Functions | |

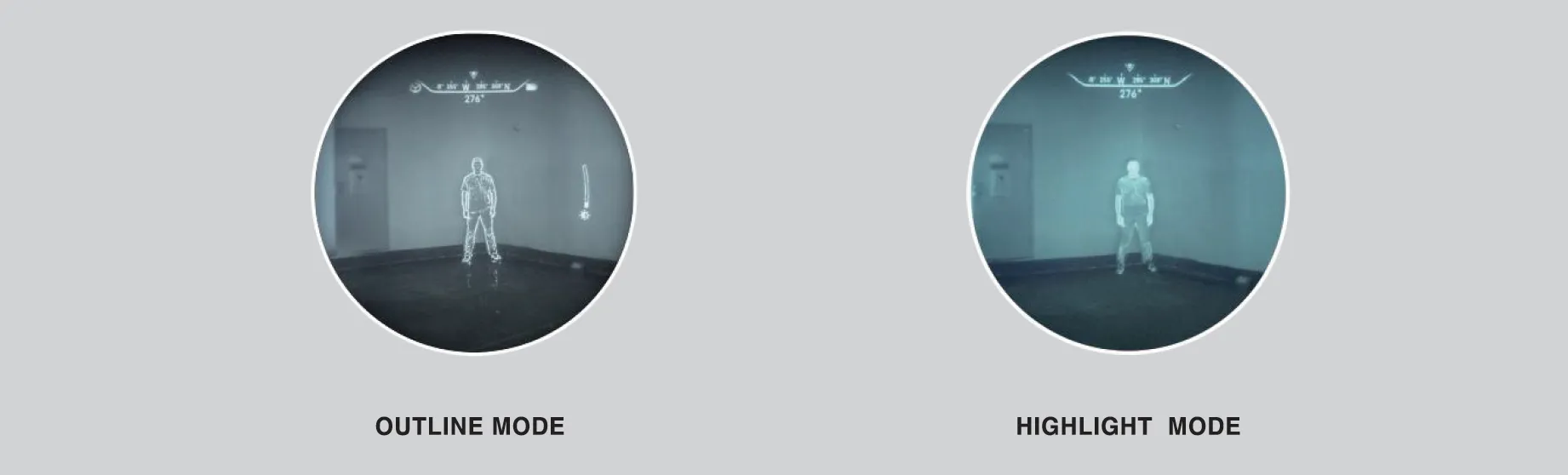

| Image Modes | Highlight, Outline |
| Adjustable Threshold | ✓ (Outline mode) |
| Auto Control | Brightness, Power off, Standby |
| NVG Compatibility | |
| Compatible | PVS-14 (RNVG, DTNVS, 1431), L3 Harris BNVD (PVS-31A, GPNVG) |
| Minimum Fusion Distance | 10m |
| Physical | |
| Dimensions (W × H × D) | 86mm×65mm×40mm |
| Weight | <65g (no battery) |
| Color | Brown/Black |
| Power Supply | |
| Battery Type | 1 × CR123A / Battery pack |
| Battery life | 3h (CR123A) / 10h(Battery pack) |
| Environmental | |
| Immersion | IP67 |
