ELF-FB 20 ENHANCED NIGHT VISION BINOCULAR GOGGLES
FEATURES
The ELF-FB 20 is a new-generation enhanced binocular fusion night vision device. Comprehensive upgrades are implemented in image intensifier tube compatibility, low light and infrared imaging quality, fusion algorithm, size, and weight, delivering enhanced night vision and threat recognition performance.
LOW-LATENCY FUSION IMAGING
Latency of less than 30 ms
EXCELLENT OPTICAL PERFORMANCE
Low distortion and chromatic aberration under low light imaging
LIGHTWEIGHT DESIGN
Whole unit weight of only 550 g
INTELLIGENT FUSION IMAGE ALGORITHM
ACCESSIBLE TO ATAK SYSTEM
技术参数
| Optical General | |
| Magnification | 1× |
| Focus Range | 250mm ~ +∞ |
| Focal Length | 27mm |
| FOV | 40° |
| Image Intensifier Tube | |
| Tube Type | GEN2+ / GEN3 (Optional) |
| Compatibility Range | 18mm (NVVT、10160、11769) |
| Phosphor | White/Green |
| FOM | FOM1400/FOM1600/FOM1800/FOM2000 |
| Thermal Channel | |
| Resolution | 640×512 pixels,12μm |
| Frame Rate | 60Hz |
| FOV(H×V) | 24°×20° |
| Others | |
| Screen | OLED,1280*1024 |
| Compass | ✓ |
| External GPS | ✓ (Optional) |
| Advanced Functions | |

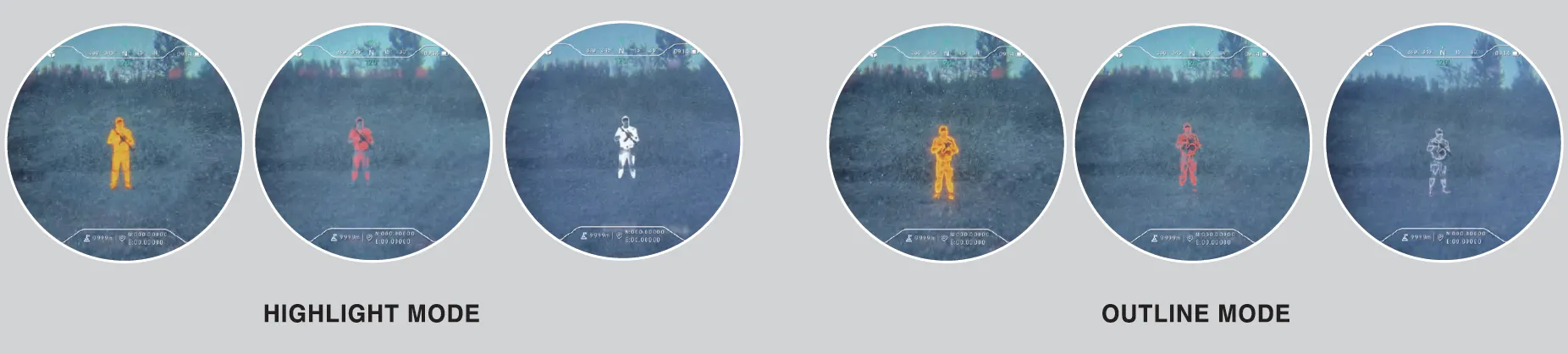

| Image Fusion Modes | Highlight, Outline |
| Strong Light Protection | ✓ |
| Auto Power-off | Flip-up, Turn on side |
| Brightness Control | ✓ |
| Eyepiece | |
| Exit Pupil Distance | 25mm |
| Diopter | -4 ~ +2D |
| Spacing | 55~72mm |
| Physical | |
| Dimensions (W × H × D) | 105mm×110mm×87mm |
| Weight | <540g (no battery) |
| Mounting Interface | L4G24 |
| Power Supply | |
| Battery Type | Battery pack (2 × 18650) |
| Battery life | 8h (Fusion) / 80h (Night vison) |
| Environmental | |
| Immersion | IP67 |
