ELF-MU MULTI-FUNCTIONAL THERMAL MONOCULAR
Features
The ELF-MU four-in-one multifunctional infrared monocular thermal imager is fitted with a high-performance infrared detector, featuring a lightweight and compact design and long battery life. It supports four operational modes: handheld, head-mounted, thermal aiming and forward clip-on.

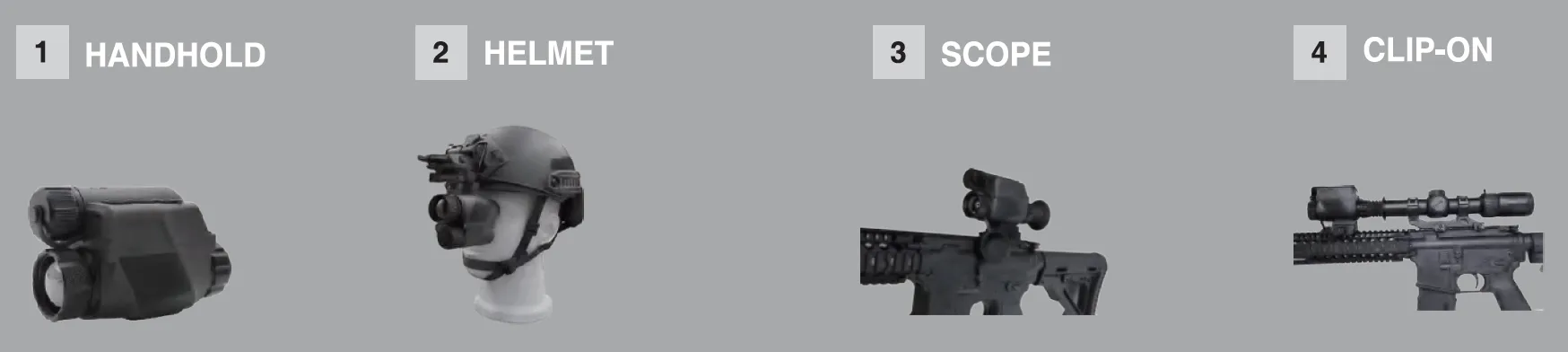

FOUR-IN-ONE DEVICE
It supports four modes: scope, clip-on, helmet, and handheld
SUFFICIENT OPERATION TIME
Powered by a single 18650 battery, it supports up to 10 hours of continuous operation.
LIGHTWEIGHT BODY
The whole unit weighs 270 g only, suitable for long-time handheld or head-mounted use.
HIGH IMPACT RESISTANCE
It can withstand impact up to 1000G.
Infrade Range Performance Human
Infrade Range Performance Vechicle
TECHNICAL DATA
| Thermal Channel | |
| Sensor Resolution | 640×512 pixels, 12μm |
| Frame Rate | 50Hz |
| Focal Length | 26.7mm / F1.0 |
| FOV(H×V) | 16.3°×12.3° |
| System Magnification | 1× |
| Advanced Functions | |
| Operating Mode | Clip-On,Thermal SightHead-Mounted,Hand Held |
| PIP | ✓ |
| Photo Taking/Video Recording | ✓ |
| Standby Mode | ✓ |
| Clean Mode | ✓ |
| APP | ✓ |
| Remote control | ✓ |
| Display | |
| Screen Type | OLED |
| Resolution | 1024×768 |
| Eyepiece | |
| Exit Pupil Distance | 25mm |
| Diopter | -5 ~ +2D |
| Physical | |
| Dimensions (W × H × D) | 113mm×70mm×48mm |
| Weight | ≤ 270g |
| Power Supply | |
| Battery Type | 1 × 18650 lithium batteries |
| Battery life | > 10h |
| Environmental | |
| Immersion | IP67 |
