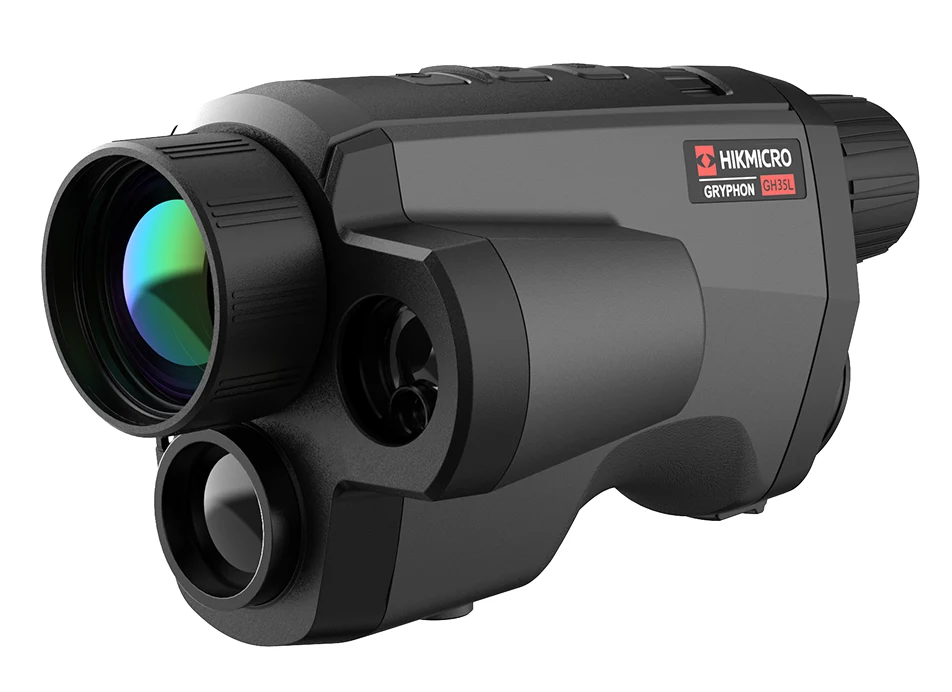

HIKMICRO Gryphon LRF GQ35L Thermal Fusion Monocular With Rangefinder
Features
HIKMICRO GRYPHON GQ35L handheld thermal monocular camera is equipped with a 640 x 512 infrared detector, a 1920
x 1080 Low illumination optical detector and a 1024 x 768 OLED display. It supports functions of observation, Wi-Fi hot
spot, hot tracking, bi-spectrum image fusion, laser distance measurement, and so on. The monocular is mainly applied to
scenarios such as patrolling, law enforcement, searching and rescuing, narcotic enforcement, anti-smuggling, tracing and
arresting, hiking, and travel, etc.
Thermal
640 × 512 resolution, high sensitivity detector, contract adjustment
3D DNR
35 mm lens
Battery
Built-in rechargeable lithium battery
4.5 hours continuous running with CVBS, Wi-Fi hot spot function off (@25°C)
Optical
Low-light-level detector
1920 × 1080 resolution
Function
Wi-Fi hot spot
Built-in EMMC v5.1 Interface with large memory (16 GB),support picture snapshot and video
Recording
Digital zoom
Precision laser rangefinder
Type-C Interface
Control knob
Display
0.39 inch OLED display
1024 × 768 resolution
Thermal, optical and fusion modes
Specification
| Thermal Module | |
| Image Sensor | VOx Uncooled Focal Plane Arrays |
| Max. Resolution | 640 × 512 |
| Frame Rate | 50 Hz |
| Pixel Interval | 12 μm |
| Response Waveband | 8 μm to 14 μm |
| NETD | < 35 mK ( @25°C, F# = 1.0) |
| Lens (Focal Length) | 35 mm |
| Focus Mode | Manual |
| Detection Range | 1800 m |
| Field of View | 10.97° × 8.82° (H × V) |
| Min. Focusing Distance | 3 m |
| Aperture | F1.0 |
| Magnification | 2 |
| Digital Zoom | 1 ×, 2 ×, 4 ×, 8 × |
| Optical Module | |
| Image Sensor | 1/2” Progressive Scan CMOS |
| Focal Length | 22 mm |
| Wavelength | 400 nm to 1000 nm |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | 0.001 Lux @ F1.0 |
| Image Display | |
| Frame Frequency | 50 Hz |
| Display | 0.39 inch, OLED, 1024 × 768 |
| Image Mode | White Hot, Black Hot, Red Hot, Fusion, Visible, Image Fusion |
| FFC (Flat Field Correction) Mode | Auto, Manual, External Correction |
| Smart Function | |
| Hot Spot | Yes |
| Hot Track | Yes |
| Distance Measurement | Yes |
| Standby Mode | Yes |
| System | |
| Record Video | Yes |
| Capture Snapshot | Yes |
| Built-in Memory | 16 GB |
| Power Supply | |
| Battery Type | One 18650 battery |
| Battery Operating Time | 4.5 hours |
| Power | Removable Battery |
| General | |
| Protection Level | IP67 |
| Dimension | 87.2 mm × 73.3 mm × 167.8 mm (3.43 inch × 2.88 inch × 6.61 inch) |
| Weight | 510 g |
| Working Temperature | -30 to 55°C |
| Eye-Relief | 19.5 mm |
| Laser Rangefinder | |
| Safety Class for Laser | Class 1 |
| Wavelength | 905 nm |
| Max. Measuring Range | 600 m |
| Measurement Accuracy | ± 1 m |

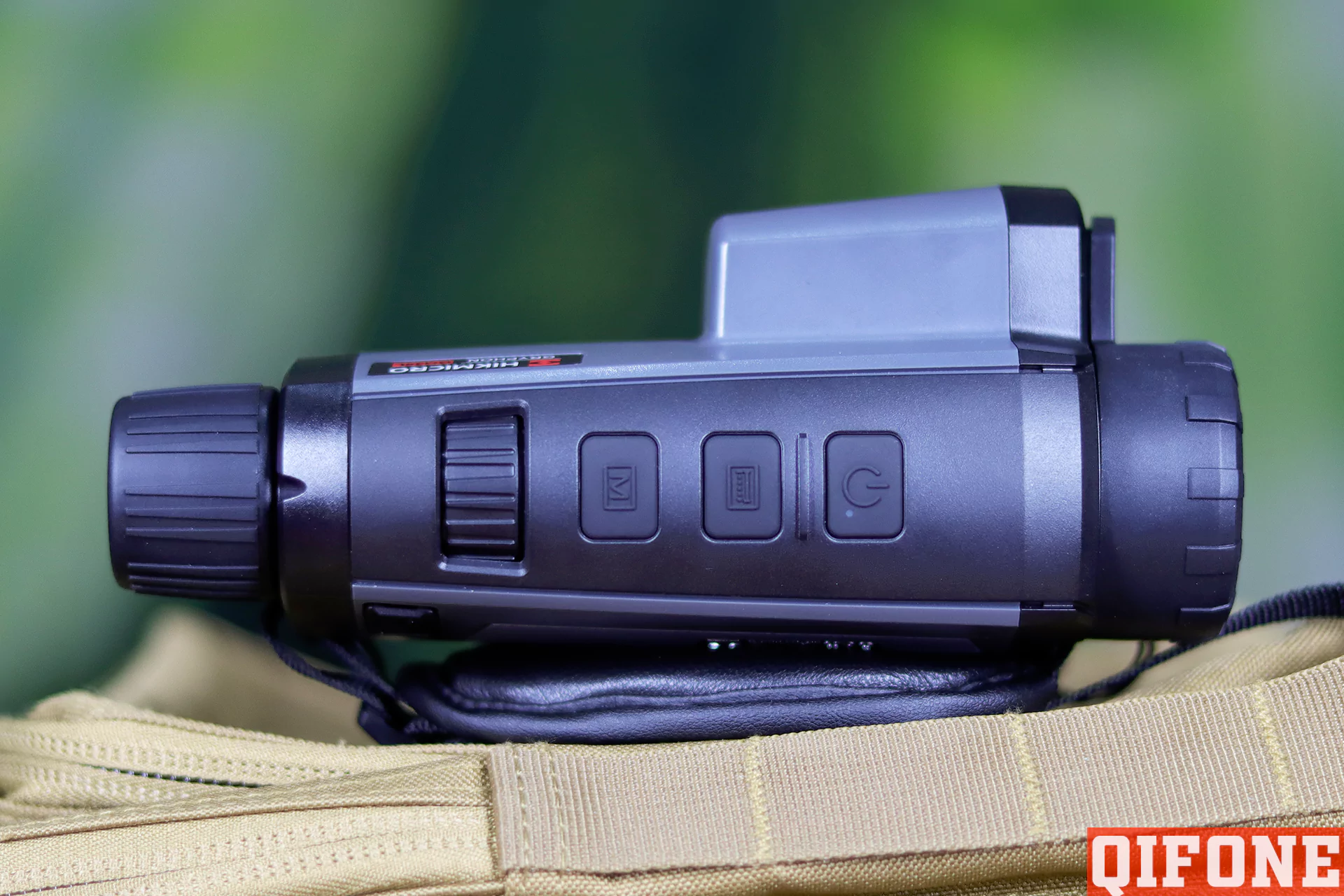

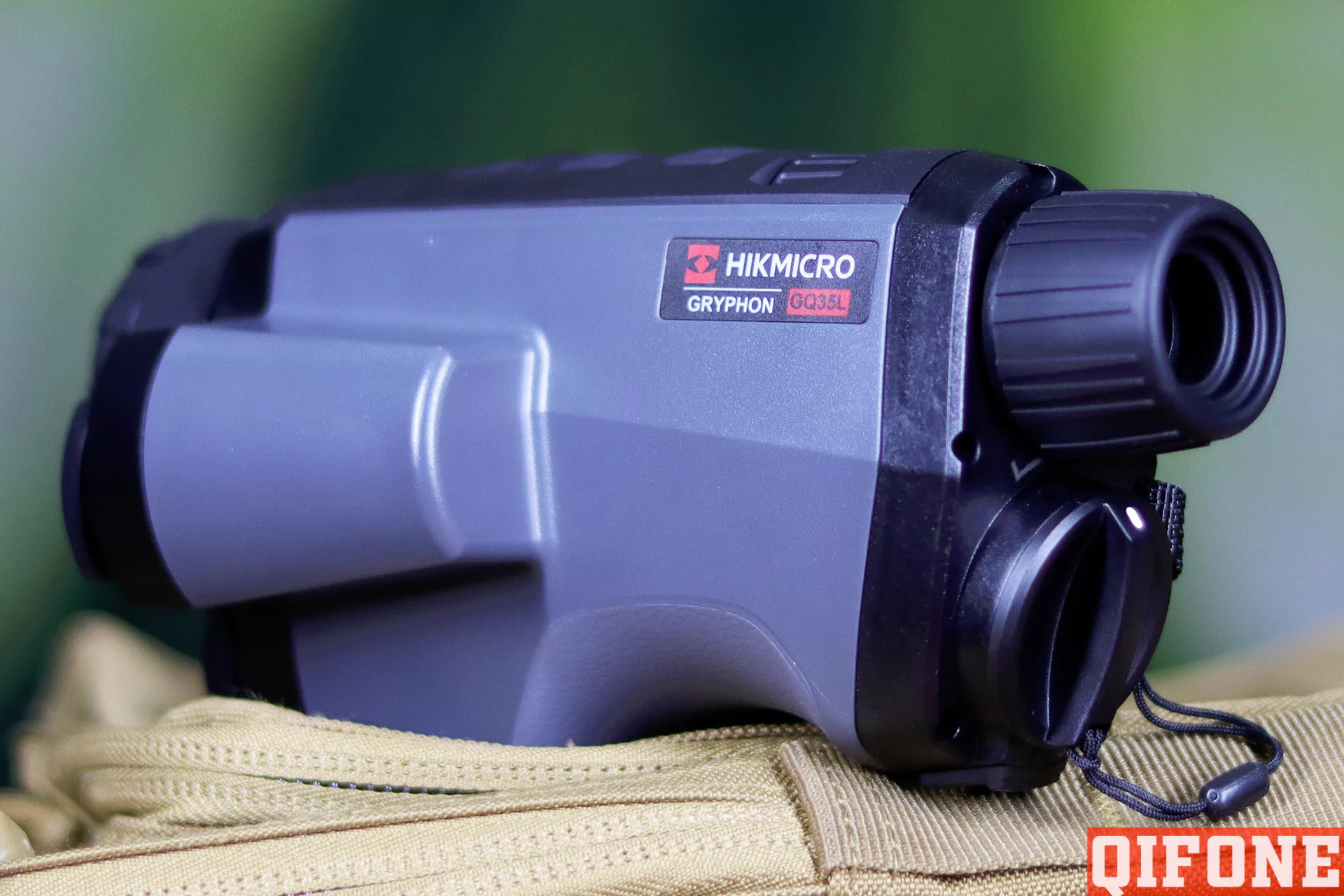

Images of HIKMICRO Gryphon GQ35L
