MIRIT THNV-C640 Fusion Thermal Imaging & Night Vision Binocular WIFI GPS
MIRIT THNV-C640 Fusion Thermal Imager (hereinafter referred to as Thermal Imager) Binocular adopts ultra-low illumination COMS, infrared thermal imager, electronic compass, GPS, video compression storage and control and other integrated technologies. It can be used day and night for tactical reconnaissance, surveillance and identification of camouflaged targets, and has the characteristics of small size, easy to carry and use, and good environmental adaptability. The thermal imager is convenient for a single person to carry for cutting-edge observation, and is also suitable for setting up observation in fixed observation posts, day and night observation, photography and video recording of targets. It can be widely used in patrol, investigation, law enforcement, anti-smuggling, anti-narcotics, forest fire prevention and emergency search and rescue and other occasions.
Product Features
- Portability: small size, easy to carry, good privacy.
- HD display: The eyepiece is a high-definition 1024×768 resolution OLED display, which can work normally at -45°.
- Adaptable: It can be monitored in all environments around the clock.
- The upgrade space is large, and external mobile devices can be connected to realize wireless device control and wireless video transmission.
- Stable power supply: high-performance lithium battery, strong power to meet outdoor needs. There is also a large capacity external mobile power supply to meet the long-term uninterrupted outdoor use.
- High structural strength: the appearance is made of hard lu material as the main material of structural design, good workmanship and reliability, and its appearance effect after processing is good.
Technical Specification
| Model | MIRIT THNV-C640 |
| Detector type | VOx uncooled |
| Resolution | 640x512 |
| Cell size | 12μm |
| Field of view | 8.8°x7.0° |
| Working band | 8 - 14um |
| NETD | <50mk@25℃，@f/1.0 |
| Focal length | 50mm |
| Frame rate | ≤50Hz |
| Focus method | Electric focus |
| Display resolution | 1024x768 |
| Display size | 0.39 inches |
| Display mode | Infrared / low light / dual light fusion / picture in picture |
| Electronic zoom | 1X /2X /4X |
| Palette | rainbow, iron red, cool color, white hot, black hot |
| Detection | |
| Human(1.7mx0.5mx0.3m) | 4722 m |
| vehicle (4.5mx2.0mx1.5m) | 12500 m |
| Recognition | |
| Human (1.7mx0.5mx0.3m) | 1180 m |
| Vehicle (4.5mx2.0mx1.5m) | 3125 m |
| WIFI | 2.4G image transmission |
| Capacity | Built-in 16G eMMC |
| Photo, video | Support |
| Image/Video Format | JPG/MP4 |
| Battery | Removable rechargeable lithium battery 2000mAhx4 (Battery model 18650) |
| Machine power consumption | ≤6W |
| Battery life | ≥6 hours |
| Operating temperature | -20℃~+50℃ |
| Storage temperature | -30℃~+70℃ |
| Protection class | IP54 |
| Dimensions | 193.1mmx176.8mmx99mm |
| Weight | 1.5kg (including battery) |

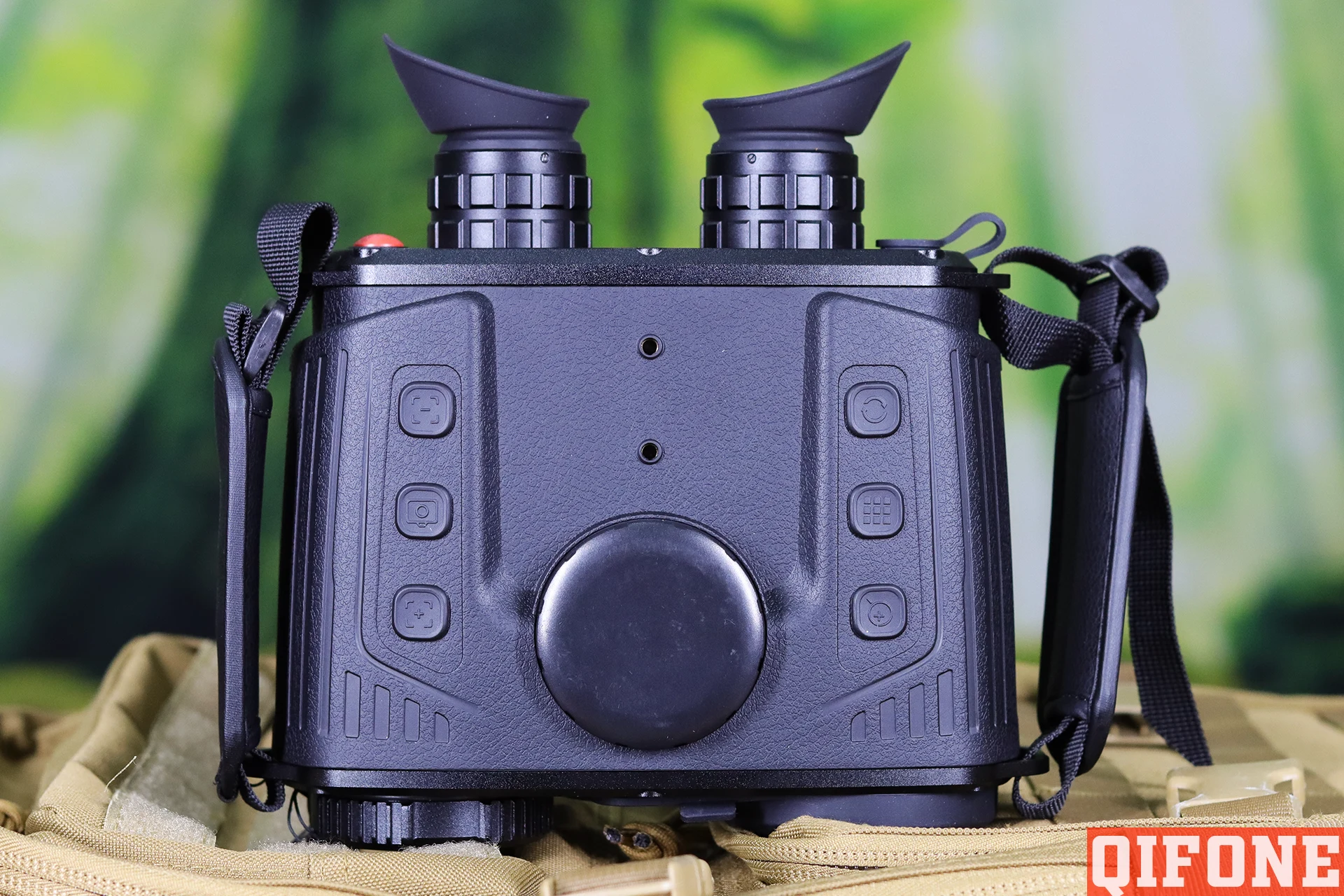

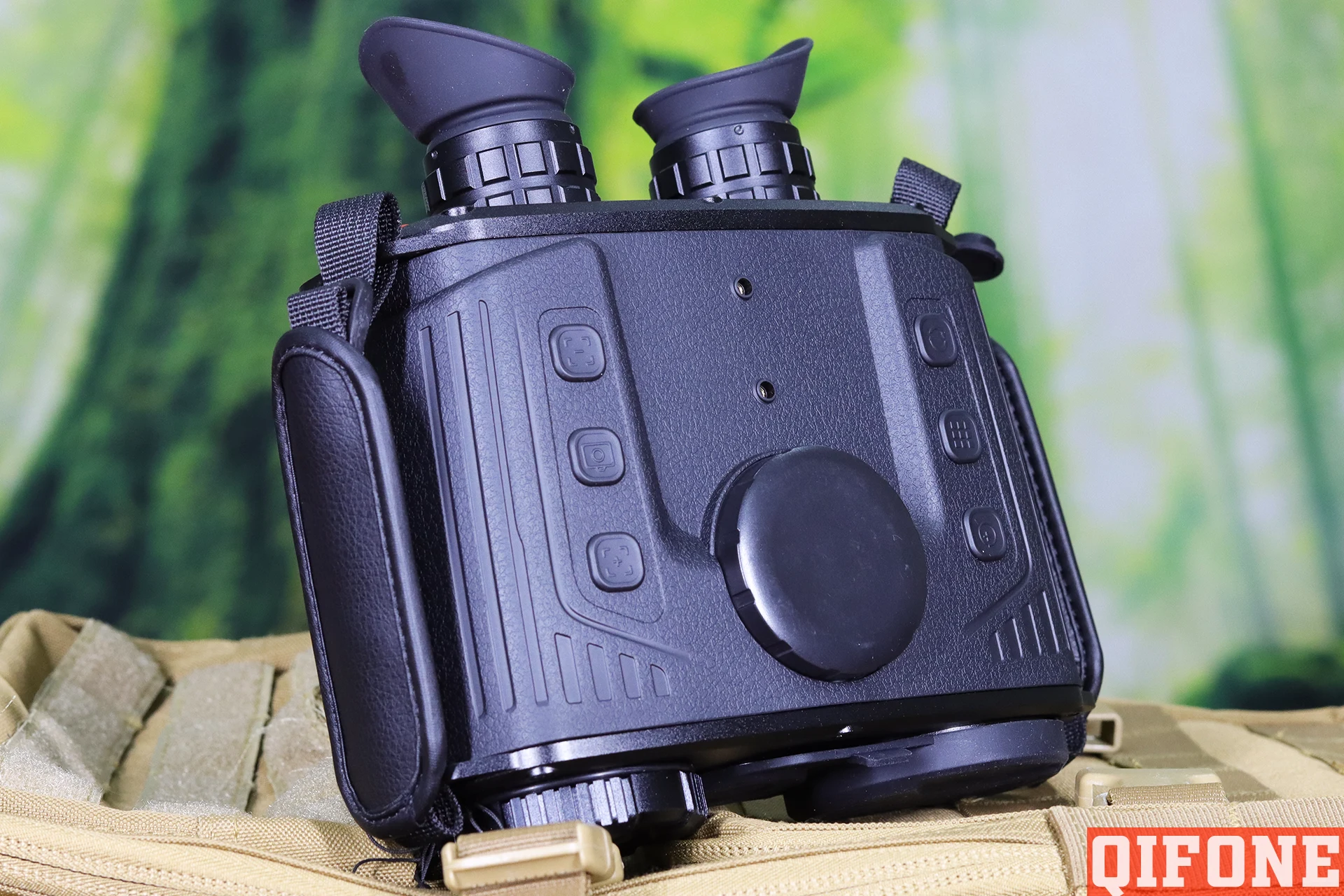

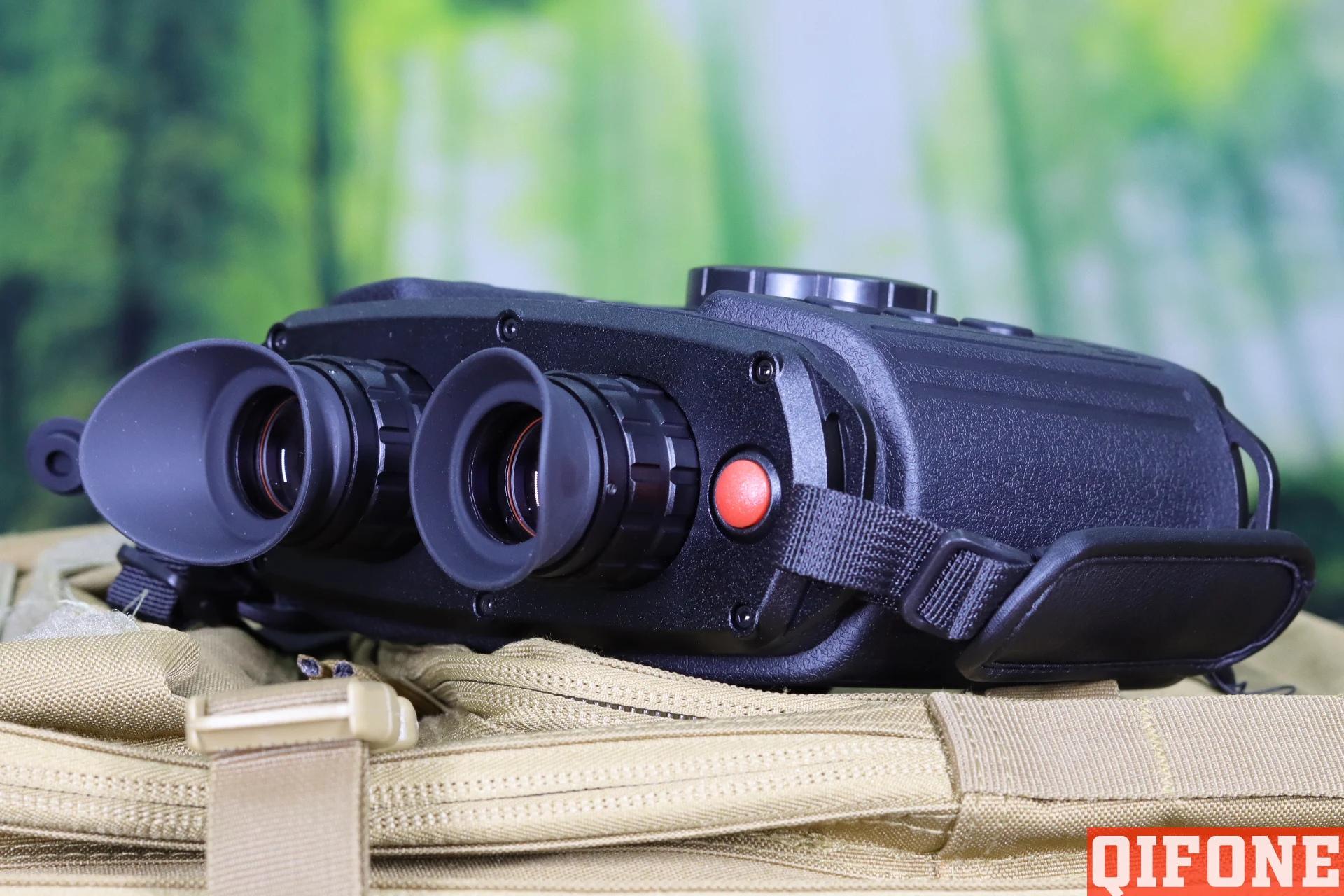

Image of MIRIT THNV-C640
