Jerry C5 Thermal Imager Night Vision Fusion Clip-On 640x512 sSensor
Jerry C5 Features
The InfiRay Jerry C5 Thermal Imager is a monocular clip-on attachment for night vision devices such as helmet-mount binoculars. It offers multiple display modes for improved target recognition.

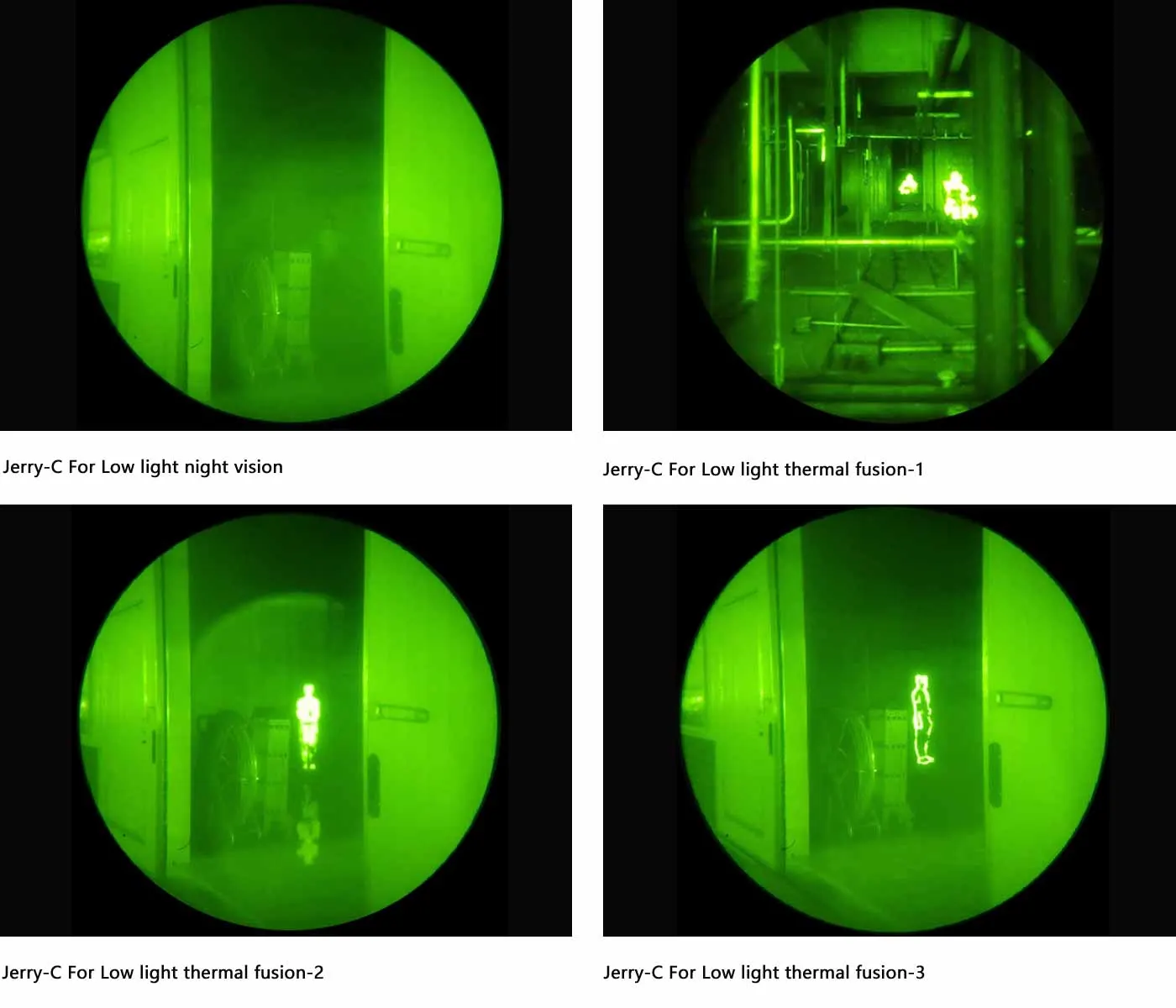

Securing to the front of your device, the C5 provides low-light, highlight, and outline modes for you to choose from. It's lightweight, waterproof, and features a 640 x 512 resolution and 30.5° field of view. For power, it supports a 17335, 18500, or 18650 battery, sold separately.
Other features include an f/11.5 lens, RS-232 interface, shutter correction, menu rollover, and brightness, contrast, and threshold adjustments.
Specification Of Jerry C5
| Product Model | C5 | CE5 |
| Infrared Indicators | ||
| Sensor Size | 640X512 | 640X512 |
| Pixel Size | 12um | |
| Spectral Range | 8~14um | |
| Optical indicators | ||
| Lens | f 11.52 | |
| Field of View | Φ30.5° | Φ30.5° |
| Function | ||
| Display Mode | White hot \ accentuate the silhouette | |
| Display features | Always bright \ breathing | |
| Brightness adjustment | Yes | |
| Auto brightness | Yes | |
| Shutter correction | Yes | |
| Contrast adjustment | Yes | |
| Run-in value adjustment | Yes | |
| Menu flip | Yes | |
| Chinese and English display | Yes | |
| Interface | ||
| Data | RS232 | |
| Video | PAL | |
| Power Supply | CR123A、117335、18650 | External power supply (3~5.5V) |
| Environment | ||
| Operating temperature | -40℃ ~ +60℃ | |
| Degree of protection | IP67 | |
| Weight | 110g | 78g |
